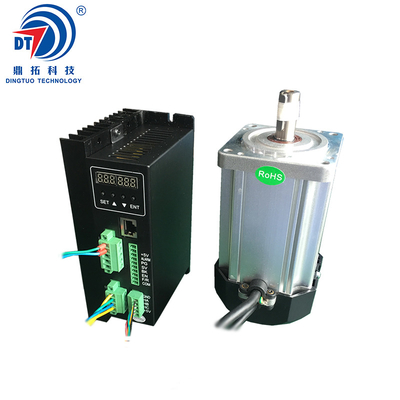

110V 220VAC 750W 3.5A Economical Type High Performance DC Brushless Driver DBLS-07-S

2 Pieces
MOQ
$70.00(2 - 19 Pieces) $60.00(20 - 99 Pieces) $50.00(>=100 Pieces)
Precio
110V 220VAC 750W 3.5A Economical Type High Performance DC Brushless Driver DBLS-07-S
Caracteristicas Galería Descripción de producto Pida una cita
Caracteristicas
Especificaciones
Warranty: 3months-1year
Model Number: DBLS-07-S
Input voltage: 110/220VAC
Continuous output current: 3.5A
Max. output current: 7.0A
Type: wall-mounting
Working temperature: 0~+45°C
Control type: Isolation
Panel: 6 digital LED display
Dimension: 165x67x102mm
Weight: 1.7kgs
Certificación: CE, ROHS, CE,RoHS
Información básica
Certificación: CE, ROHS, CE,RoHS
Model Number: DBLS-07-S
Pago y Envío Términos
Descripción de producto

310VDC 750W 3.5A economical type high performance brushless dc driver

Product Description

1. Closed Loop control, constant torque output

2. Input voltage range: 110/220VAC

3. Photoelectric isolation of input and output signals

4. Electrical stop to ensure the quickly action of motor

5. Install protection, fast response, high control accuary

6. start with strong torque, do not slow down while loading, power compesation,

7. Over load radio larger then 2times, torque always can achieve the max in low speed

8. Provide over-voltage protection, lost-voltage protection, over-current protection, over-temperature protection, illegal hall signal and other fault alarm

9. CE certification

Function

1. Three speed adjustment mathods Analog voltage speed adjustment , external digital signal speed adjustment and communication order controlling adjustment

2. Motor operate/stop control (EN) by terminal

3. Motor rotation direction control ( F/R ) by terminal

4. Break the motor to stop ( BK )

5. Speed signal output (PG)

6. Alarm output (ALM)

Parameter

DBLS-07-S high voltage with CE brushless dc motor driver

Dimension

Connection Diagram of motor and driver

Protection type

When the motor is running abnormally, the digital tube will display:

(1) Err1: stall

(2) Err2: over current

(3) Err3: hall fault

(4) Err4: input lost- voltage

(5) Err5: input over-voltage

Communication

RS-485 communication can be carried out by using the RJ45 cable connector

The RJ45 connector pins are defined as follows:
